blippor-02-03.gif (183 bytes) BUILDER: Fosen Mek. Verksteder A/S, Norway, NB 47
blippor-02-03.gif (183 bytes) CLASS: DnV +1A 1, EO, Ice 1 A*, Finnish Ice Class 1 A Super
blippor-02-03.gif (183 bytes) CARGO DECK ACCESSES: Stern ramp, drive way (LxB): 14 x 13,0 m. Driving ramp between main deck/tanktop, width: 4.4 m,elevation 8º. Wire-operated cargo lift between main deck/weather deck, dimension: 18.96 x 4.0 m, max load 70 t
blippor-02-03.gif (183 bytes) SPEED: Service speed fully loaded/ballast abt. 16.0 knots on abt. 23 t IF380
blippor-02-03.gif (183 bytes) ACCOMMODATION: 12 crew and one owners cabin
blippor-06-02.gif (154 bytes) MAIN ENGINE: Wärtsilä Vasa 16V32D, 5920 kW
blippor-06-02.gif (154 bytes) PROPELLER: Ulstein - Liaaen EACG, cp propeller
blippor-06-02.gif (154 bytes) AUX ENGINES: 2 off Mitsubishi, S6A2-MPTA, each 328 kW - Generators: Leroy Somer LSA 475 M6
blippor-06-02.gif (154 bytes) SHAFT GENERATOR: 1 off Leroy Somer LSA 49 L9

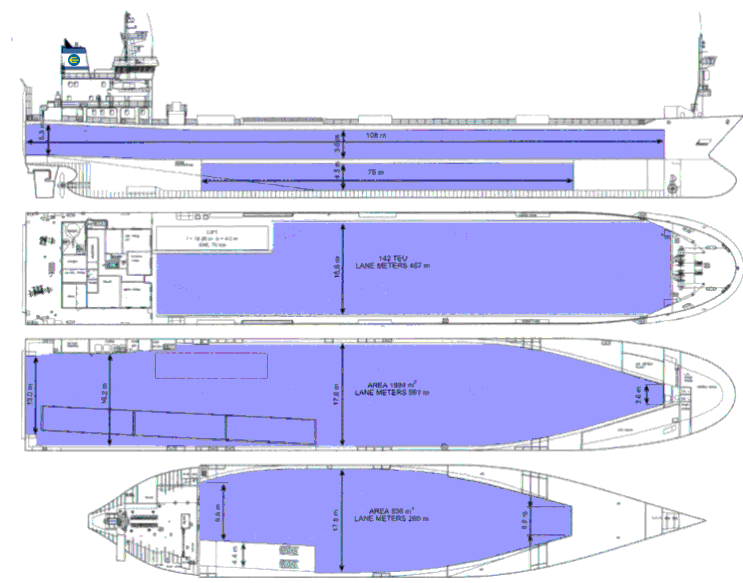

  Lane length Area Free height Deck load Boggie axel load
Tank Top 260 m 836 m² 4.3 m 5.0 t/m² 50 t
Main Deck 561 m 1684 m² 5.0 m 5.0 t/m² 50 t
WeatherDeck 457 m     1,5 t/m² 50 t
 Total: 1278 m 2520 m²


Details believed to be correct but are not guaranteed.
